2021 China New Design Intelligent Street Lighting - smart led street light CTA – C-Lux Detail:

What Function Does C-Lux Smart Street Light Bring

Auto-control
GiS system
Data Report
Group control
Date collection
Maintenance Advice
Dimming
On-Off
Failure Warning
Smart Operation

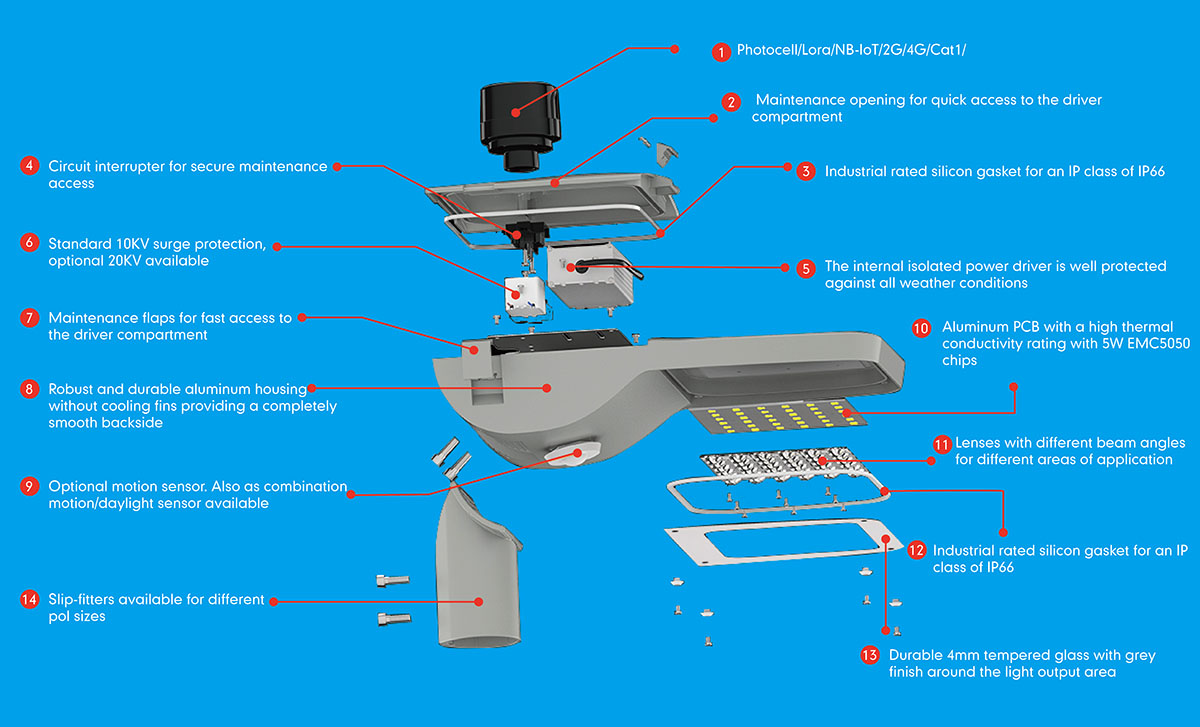

Construction

construction2
打印

Multiple Light Distribution Options

Streetlight has a wide range of applications and also these light distribution curves have strict requirements.In order to meet these professional requirements and to comply with the CIE140/EN 13201/CJJ 45 standard,we designed two different light distribution.Under the premise of meeting the requirements of safe and comfortable lighting and general use of the
Product,the road with different road widths should be covered with less light as much as possible.
Me1 and ME 2 are suitable for multi-lane arterial roads and expressways.
ME 3,ME4 and ME 5 are suitable for two-lane or single-lane roads and side roads

Single-lane carriageway

Single-lane carriageway

This narrow distribution is great for lighting walkways, path and sidewalks. spacing height ratio of luminary can reach 3.8, according CIE 140/EN 13201 requirement(ME 3~ME 5), those parameters[Lav, UO,UI, TI,SR] are passed in Dialux simulation.

Two-lane carriageway

Two-lane carriageway

The narrow distribution also can be used to two-lane carriageway. you can use to apply wide walkways, access road and side roads. Spacing height ratio of luminary can reach 3.8, according CIE 140/EN 13201 requirement(ME 3~ME 5), those parameters[Lav,UO,UI,TI,SR] are passed in Dialux simulation

Two-lane carriageway

Two-lane carriageway

The wide distribution is great for expressways, multi-lane arterial roads. Spacing height ratio of luminary can reach 3.5. According CIE 140/EN 13201 requirement(ME 1~ME 2), those parameters [Lac,UO,UI,TI,SR] are passed in Dialux simulation

Multi-lane carriageway

Multi-lane carriageway

The wide distribution also can be used to multi-lane carriageway. You can use to apply multi-lane arterial roads.Spacing height ratio of luminary can reach3.5. According CIE 140/EN 13201 requirement(ME 1~ME 2). those parameters[Lav, UO,UI, TI,SR] are passed in Dialux simulation

C-Lux “CTA series” deliver high efficient,long lifetime and low maintenance. The smooth self-clean low EPA and scaly modern design and have obvious effect of heat dissipation.Optics integrated into the clear PC lens are designed for optional light distribution .This reliable unit have 50,000hours design life significantly reducing maintenance needs and expense.Specially,Fitted with C-Lux Gen1 intelligent controlling system thought Motion sensor or photocell, The CTA series will bring more simply,fast,intelligent operation compared to traditional LED fixture.

Product Datasheet

Technical Datasheet
Model No.

CTA50

Power

50W

Input Volt

AC100-250V

PF

>0.95

Control

Sensor

Smart protocol

Photocell/PIR sensor/Radar sensor

Driver

Philip/Meanwell/Others

Led Chip

Philip/Osram/Other    High quality SMD3030/SMD5050

CRI

70+/80+

Luminous Flex

6000lm@3000K

6750@4000K/5000K/6000K

Lighting efficiency

135lm+-10%

Beam Angle

125°

Operating Temp.

-40℃~+50℃

Storage Temp.

-40℃~+85℃

IP Class

IP66

IK Class

IK10

Certificate

CB/CE/SAA/ENEC/RoHS

Lifetime

50000hours@L70    5year warranty

Pack Size

300x200x110mm

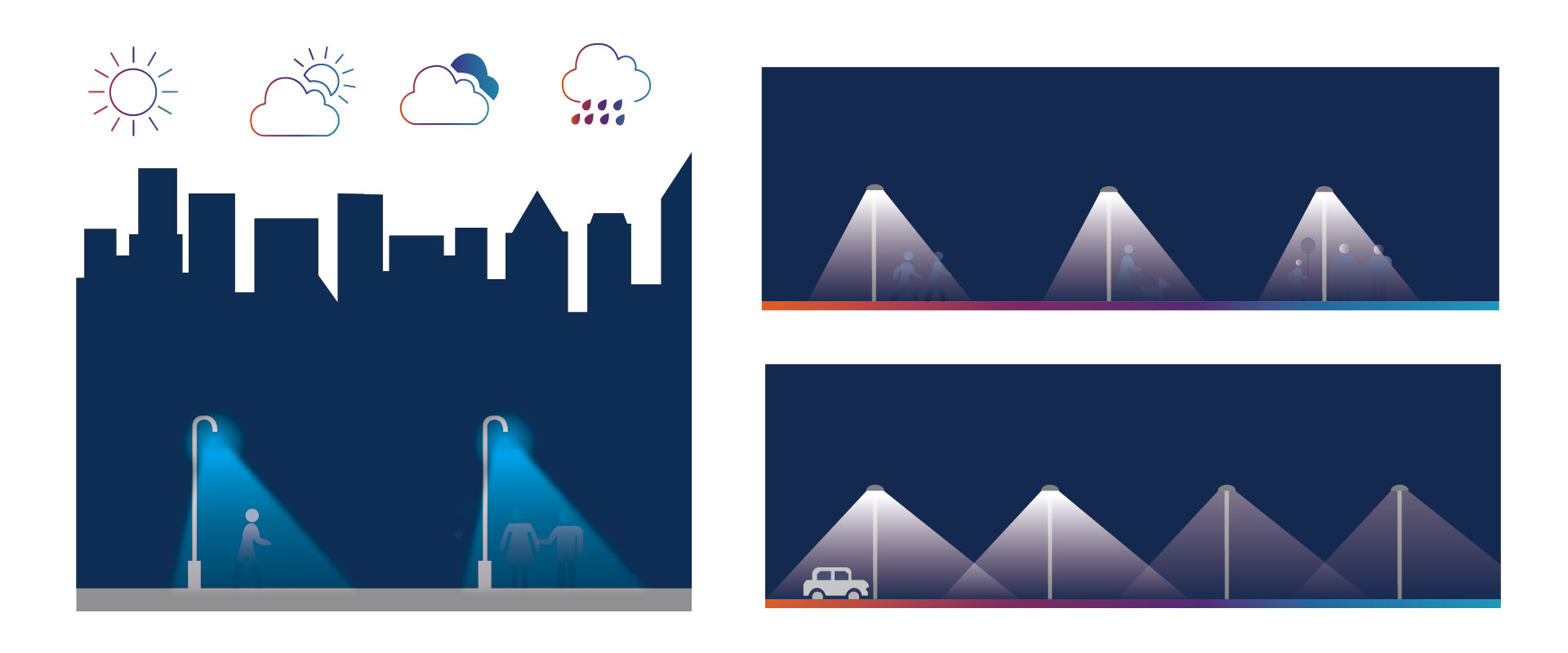

Fitted with C-Lux Gen1 SENSORS FOR AUTONOMOUS DYNAMIC SCENARIOS

Photoelectric sensors switch on the luminaires exactly when natural light becomes insufficient (cloudy day, night fall, etc.) so as to provide safety and comfort in the public space.In places with little nocturnal activity, lighting can be dimmed to a minimum most of the time.

By using motion sensors such as PIR sensors,levels can be raised as soon as a pedestrian or a vehicle is detected in the area.

Speed (and direction) sensors such as radars work with a wide detection,area to classify the identified moving item.following its speed and its direction. This classification provides the right response according to predefined lighting scenarios.

Gen1

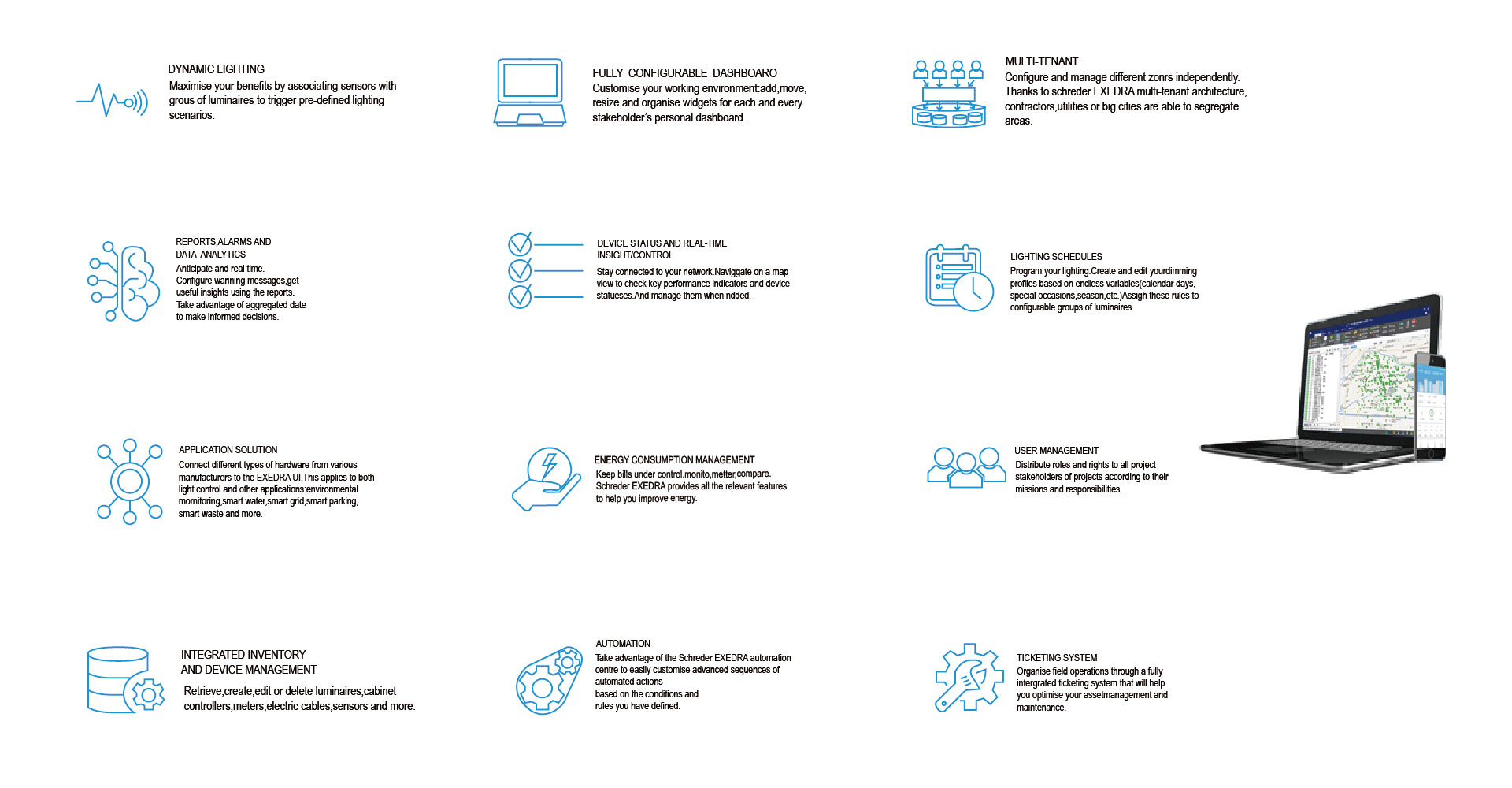

Gen-2


Product detail pictures:
