Recessed smart led linear light LLB

Short Description:

► High Lighting efficiency: 120~140lm/W

► High uniformity, excellent efficiency and reduced glare in T-grid ceiling applications.

► PF>0.9 THD<12 Flicker Free

► Excellent heat dissipation and modern design

► High grade,elegant seamless aircraft aluminum

► Linkable each other

► Anti-glare design

► Spot&flood lighting design.

► 50,000hrs life design for driver and LED. 5 year warranty

►Smart dimming or color tuning for optional 2700K~6500K

►BLE Mesh smart control, with motion and daylight 2-in-1 sensor.

Benefits of linear lighting smart control

►Bluetooth mesh smart control led tunable white panel light offer a new lighting solution.

►Dimmable 5%~100% and CCT adjustable 2700K~6500K

►With motion sensor and daylight harvesting optional

►controlled by APP, remote control,sensor and smart wall switch

►Significantly reduce subsequent maintenance costs, and competitive cost.

Application:
•office             • school            • building         •other indoor

5 year warranty high cra0-10Vwide beamvoltlonglifeHigh lighting efficienclpwypirble meshdaylight haresting


Product Detail

Product Tags

What Function Does Good-Life smart Office Linear Light Bring

CCT2700-6500K dimming

Why does Good-Life Smart office lighting make CCT adjustable and dimming?

human centric lighting

Color temperature can be adjustable dynamically in whole day
Blue spectrum have big impact on our living clocks. Color temperature 5300K and above can improve people’s efficiency in daylights and Color temperature warm white 3000K and below is better for night time.

How Does Good-Life Smart office linear Light Work

How does Good-Life Smart office linear Light control

How does Good-Life Smart office linear lighting work
smart control system

How Does Good-Life Smart office linear Light Distribution curve apply for

distribution curve

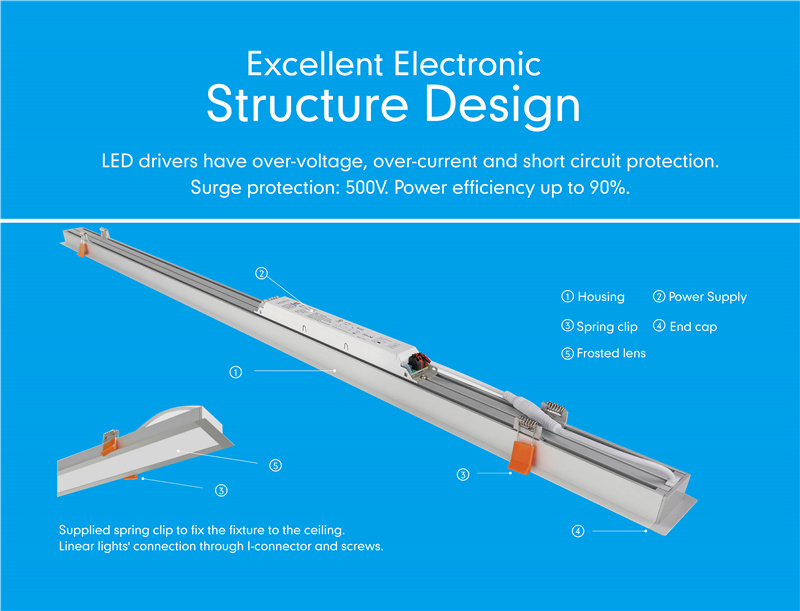

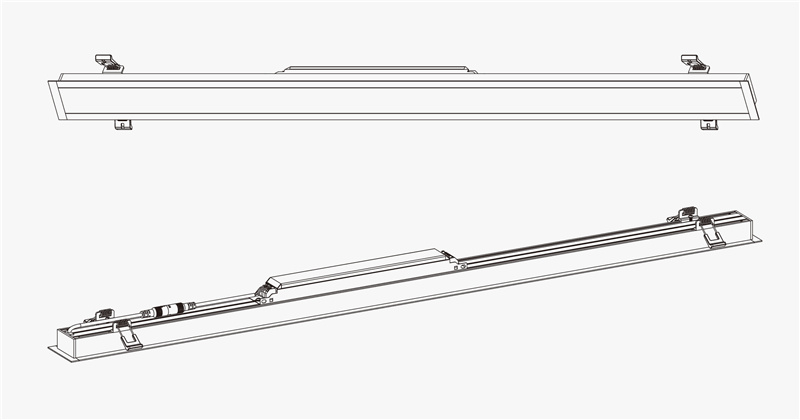

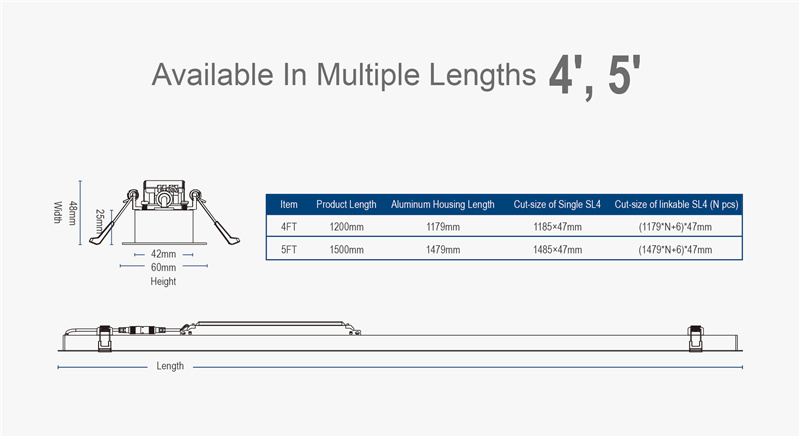

Product Construction

construction1
construction2
construction 3

Optional built-in sensor for PIR&daylight harvest sensor & 2 in 1 sensor

built-in sensor

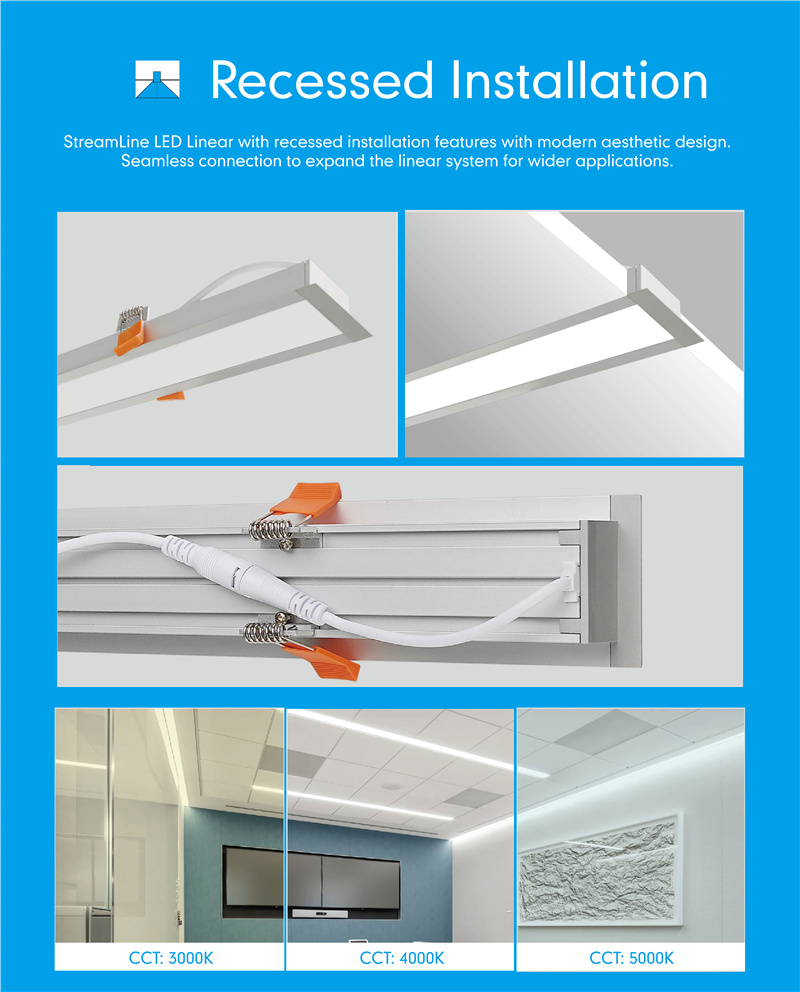

How to install

how to install

Application Case

application

Product Datasheet

Technical Datasheet
Model No. LLB20 LLB40 LLB60
Power 20W 40W 60W
Input Volt AC100-250V
PF >0.95
Control Sensor/Web smart control/app control/smart wall switch
Smart protocol Bluetooth mesh/Dali/0-10V
Led Chip High quality SMD2835
CRI 80+
CCT 300K/5000K/2700~6500K optional
Luminous Flex 2000lm+-10% 4000lm+-10% 6000+-10%
Lighting efficiency 100-120lm+-10%
Beam Angle 30/50/110 degree optional
Built-in sensor PIR&Daylight harvest & 2 in1  optional
Operating Temp. -25℃~+50℃
Certificate CB/CE/SAA/ENEC/RoHS
Lifetime 50000hours@L70    5year warranty
Pack Size 920*70*110mm 1220*70*110mm 1520*70*110mm



For more about how to work and what Good-Life smart Street Lighting bring us, please visit

If you have owned smart system, we can provide API for your integration or we can customize products with your assigned bluetooth/zigbee module,such as Casambi,inSona,etc
